User Instructions for the Car Drilling Service Workstation
Mining and engineering equipment is usually operated in remote and inaccessible areas. If such equipment breaks down, it often results in a lack of spare parts, no professional maintenance site, no professional inspection equipment, and no professional tools, causing construction sites to be shut down and project schedules to be delayed, resulting in huge economic losses for the users.
To address this industry challenge, Zhejiang Zhigao Machinery, based on its years of experience in the sales and service of mining and engineering equipment, combined with market service big data analysis, successfully launched a mobile drilling vehicle service station. This mobile station has an appearance similar to a 20-foot container, is convenient for transportation, has complete supporting facilities, and is fully functional. It solves the maintenance and repair problems of mining and engineering equipment in one step, and is another innovative product of Zhigao Machinery.

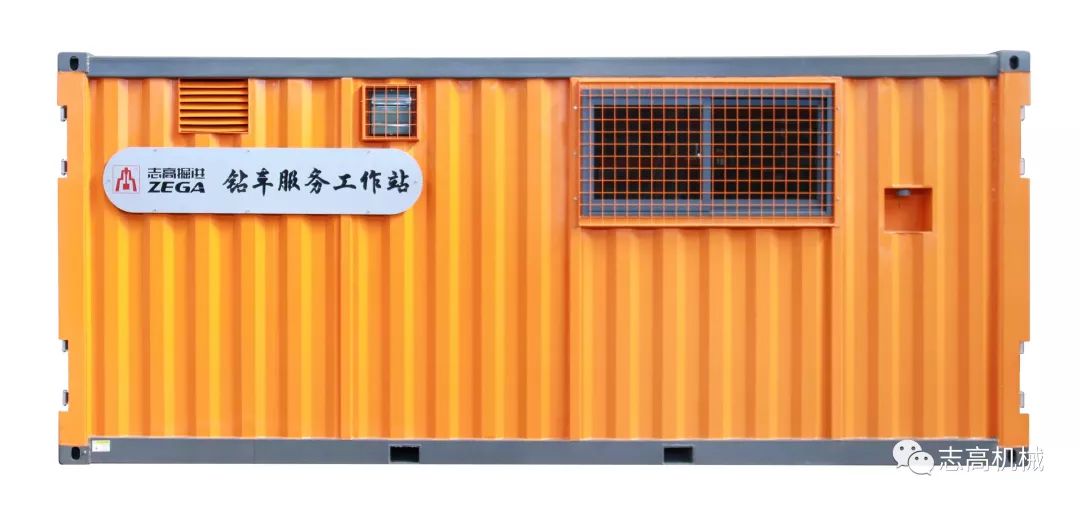

Drilling car mobile workstation photo (external)
Outside dimensions
| Internal dimensions |
External dimensions |
| Long |
5.28M |
5.5M |
| Wide |
2.67M |
2.8M |
| High |
2.15M |
2.3M |
| Weight |
5000kg
|

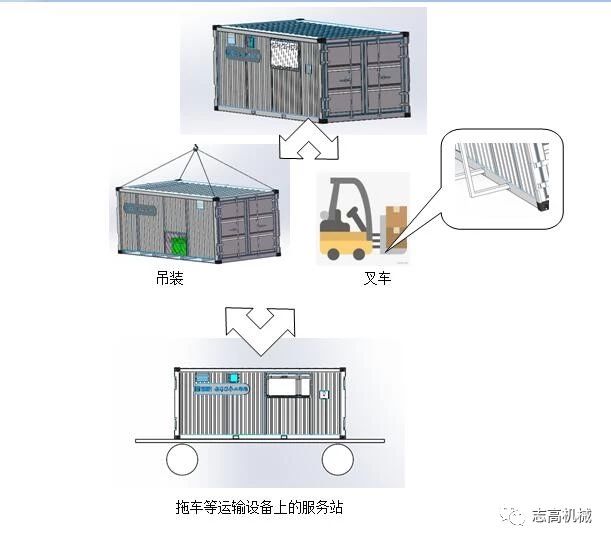

The service station is of container type, welded from steel plates and rectangular tubes, and can be moved to transport equipment such as a truck using a crane or forklift.

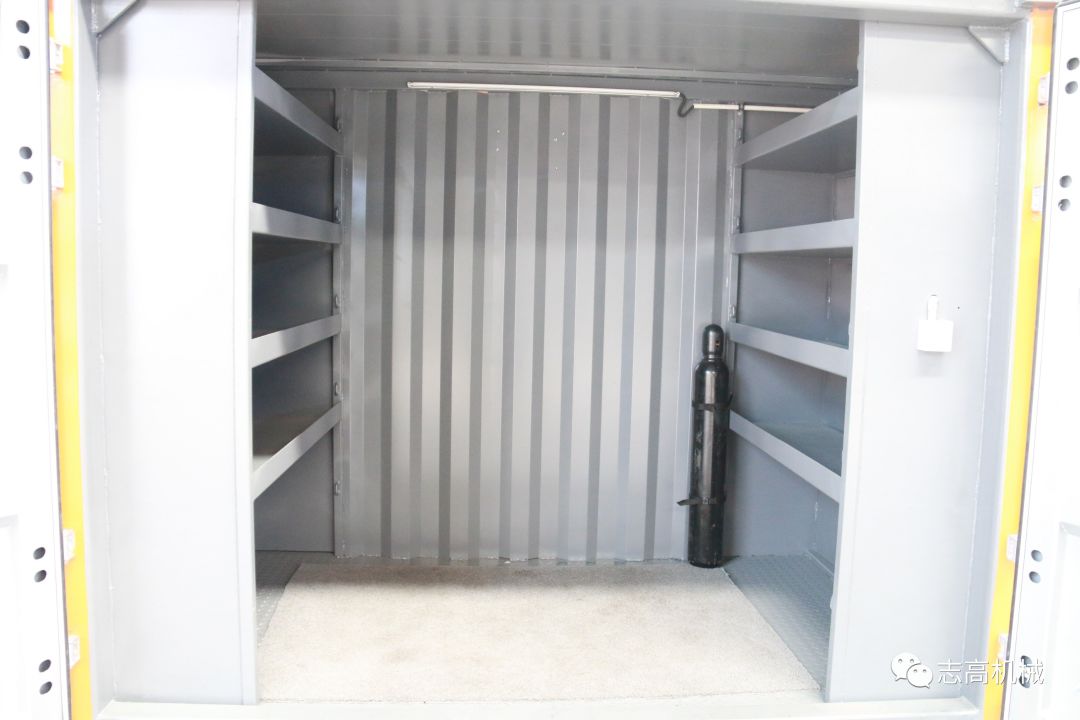

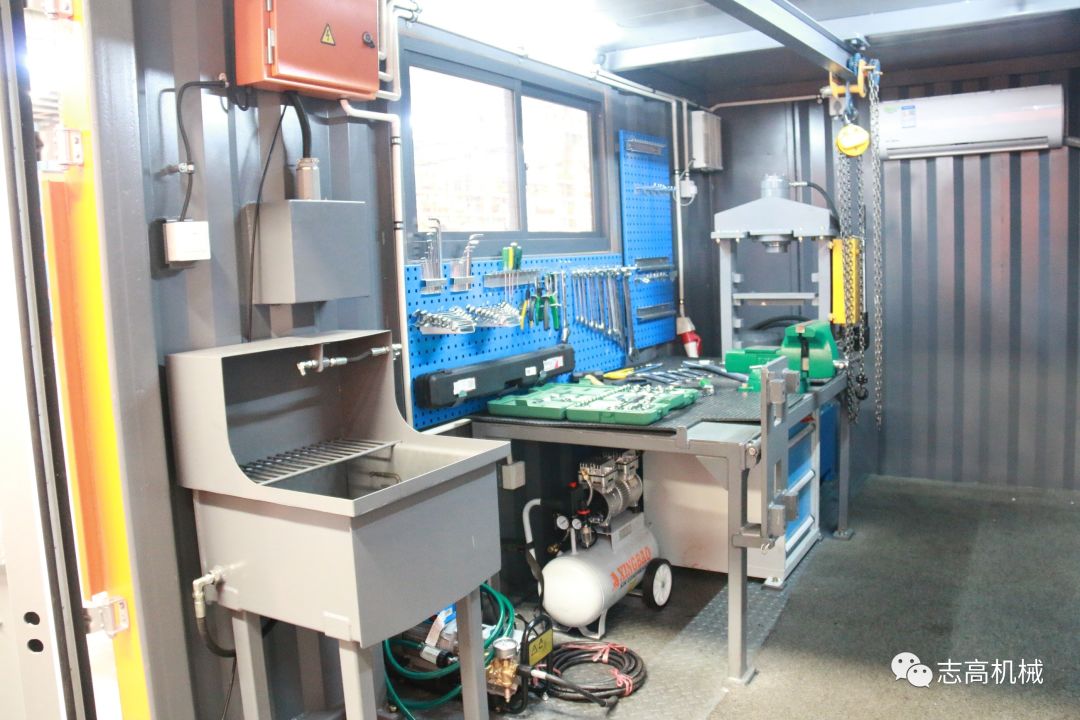

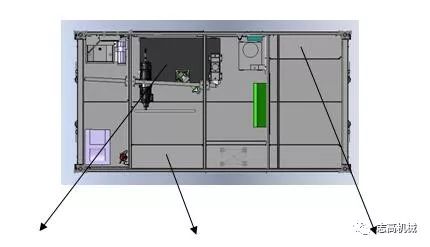

The workstation is divided into a studio and a storage room.The studiois the main working space, and in order to achieve more functions, it is equipped with the following basic settings: workbench (vise, masonry bench, hydraulic press bracket), cleaning pool, tool wall, shelves, fire extinguisher, electrical cabinet, aluminum alloy windows, etc.;The storage roomis used to store valuable spare parts needed for the maintenance of equipment.
Equipment Function Introduction
The drilling vehicle service workstation is equipped with a full range of professional drilling vehicle maintenance tools and equipment, mainly for the maintenance and repair of the machine. Below is a detailed introduction and listing of its functions.
1. Ventilation window

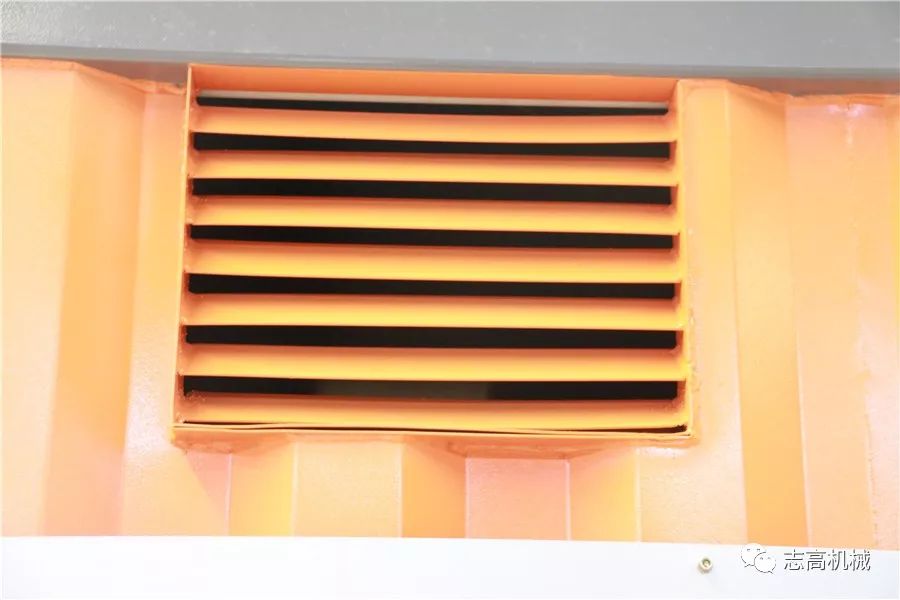

Function: Ventilation for the storage room

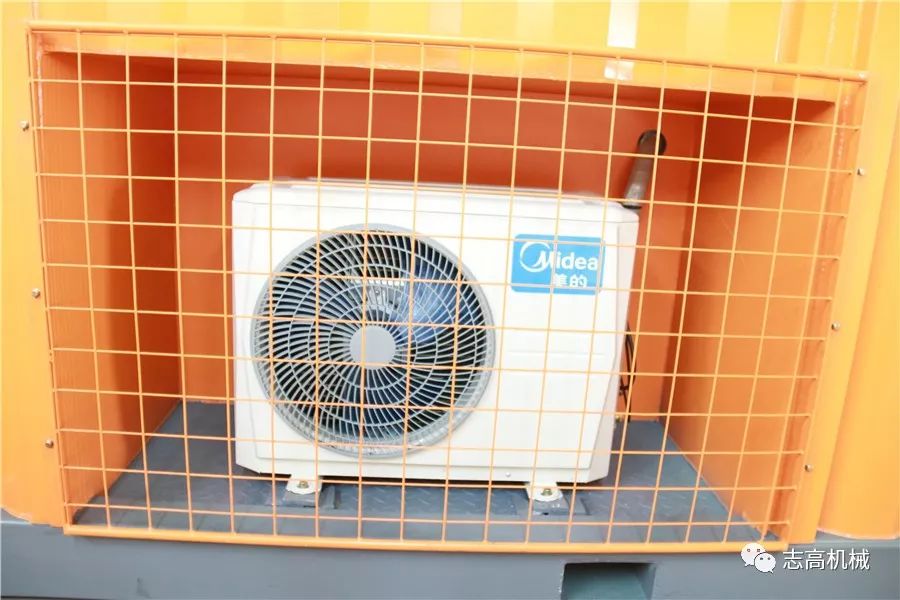

2. Air conditioning
Function: Regulate the temperature and humidity of the working environment, and provide a comfortable and safe working environment for the operator.
Air conditioning power: 1.5 horses; Energy efficiency grade: Grade 1.
Refrigeration use area: 15-23㎡ Voltage: 220V

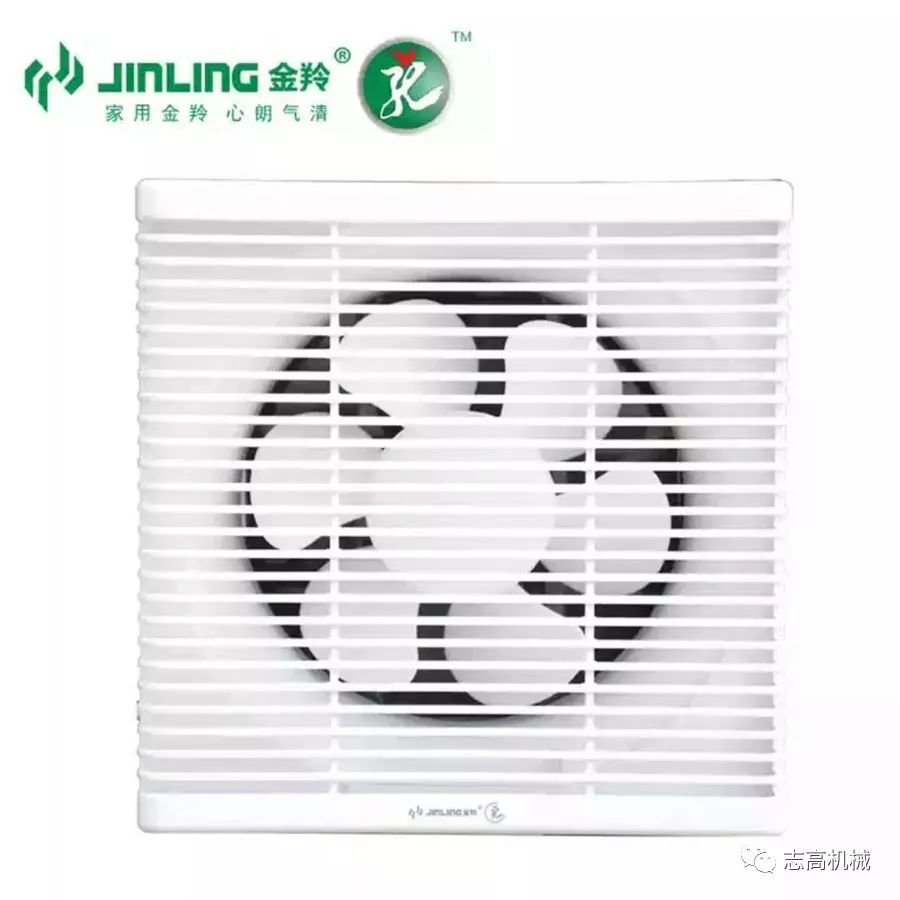

Three, Ventilation Fan
Function: Maintain air circulation in the workshop to quickly expel the volatile diesel and other solvents in the room, avoiding the occurrence of explosions or poisoning incidents due to the high content of harmful substances in the air.
Power: 28KW
Applicable area: 20-25m2

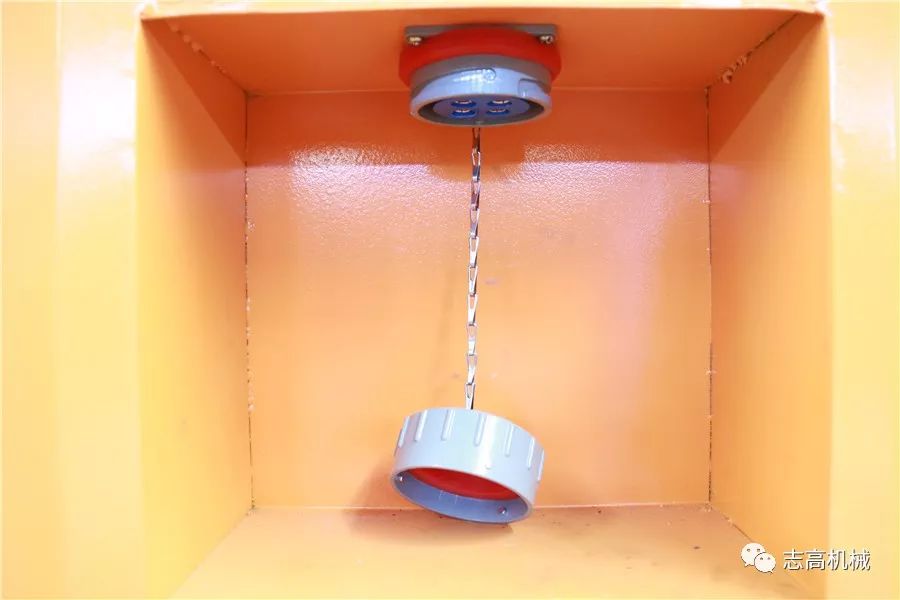

Four, explosion-proof socket
Function: Connects to the explosion-proof plug to provide a stable and safe power supply for the studio.
Rated voltage: 380V Rated current: 100A
Core hole number: 4

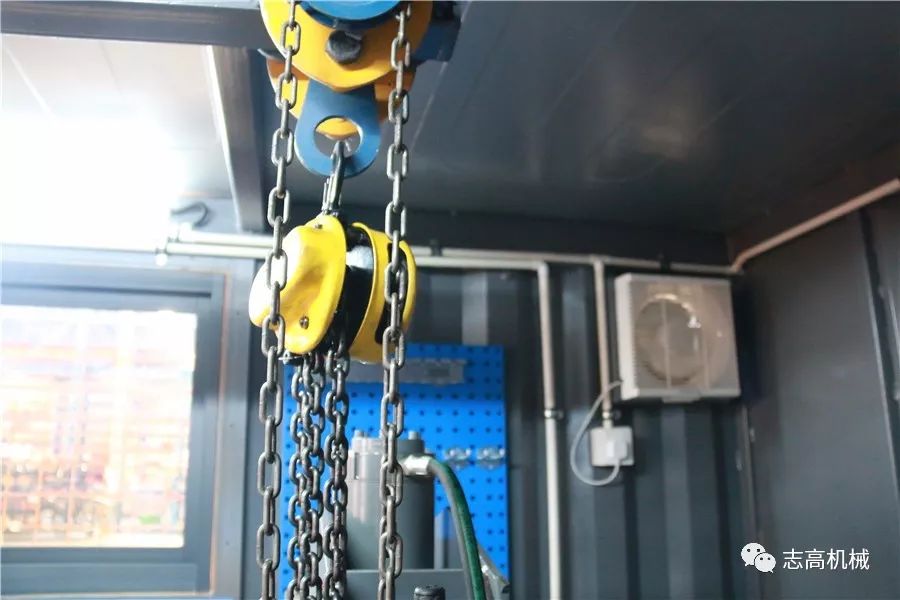

Five, hand-pulled monorail cart, gourd
Function: Move the drilling machine and other large equipment to the workbench for maintenance and repair.
Lifting capacity: 0.5T; Lifting height: 2.5m
Span: 3m

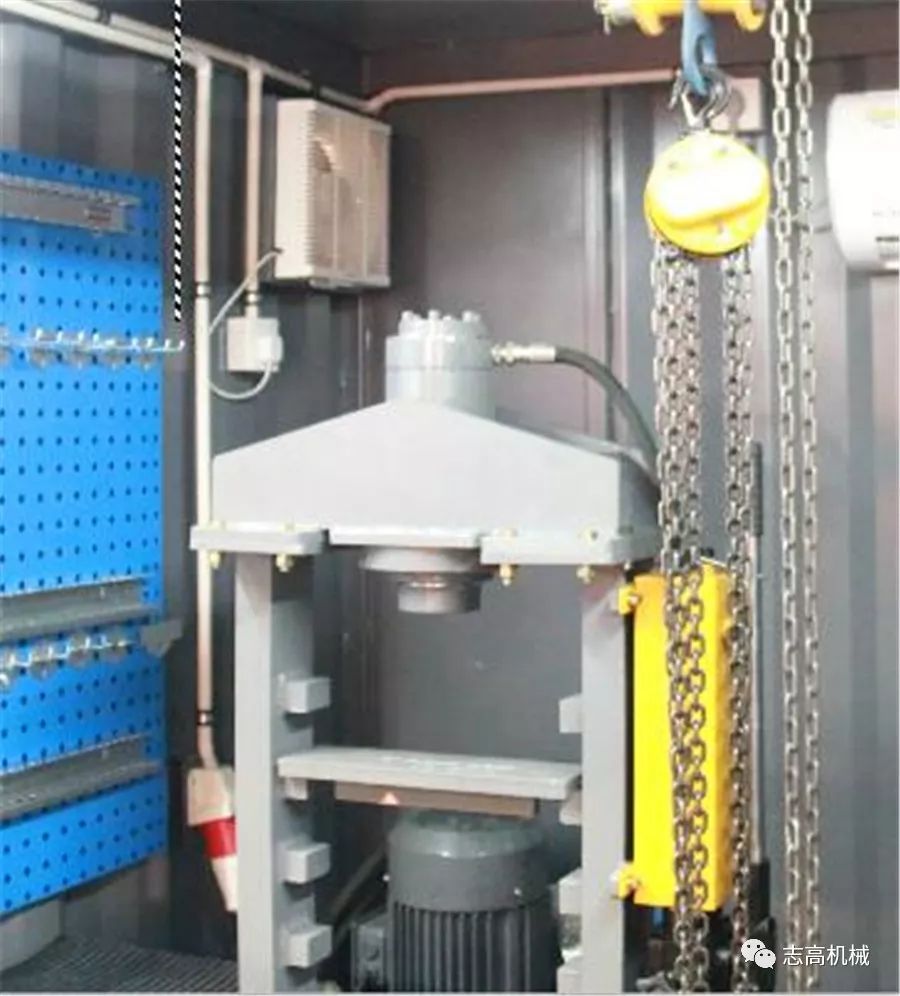

Six, Pressing Machine
Function: The manual press consists of a frame, a hydraulic cylinder, and a lubricating pump. By the up and down movement of the mold, it is possible to work on parts of different sizes.
Maximum pressure: 18MPa
Lowest pressure: 1MPa

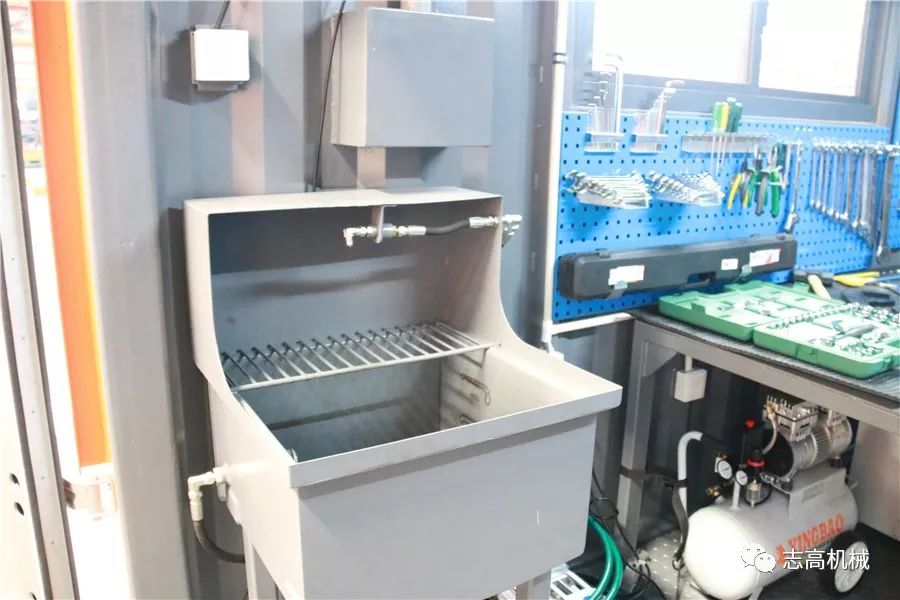

Seven, cleaning pool
Function: Equipped with an electric fuel pump YD-3.0, the diesel in the cleaning pool can be recycled for flushing and cleaning dirt.
Voltage: 220V; Output power: 100W
Maximum pressure: 1.8MPa Flow rate: 5L/min

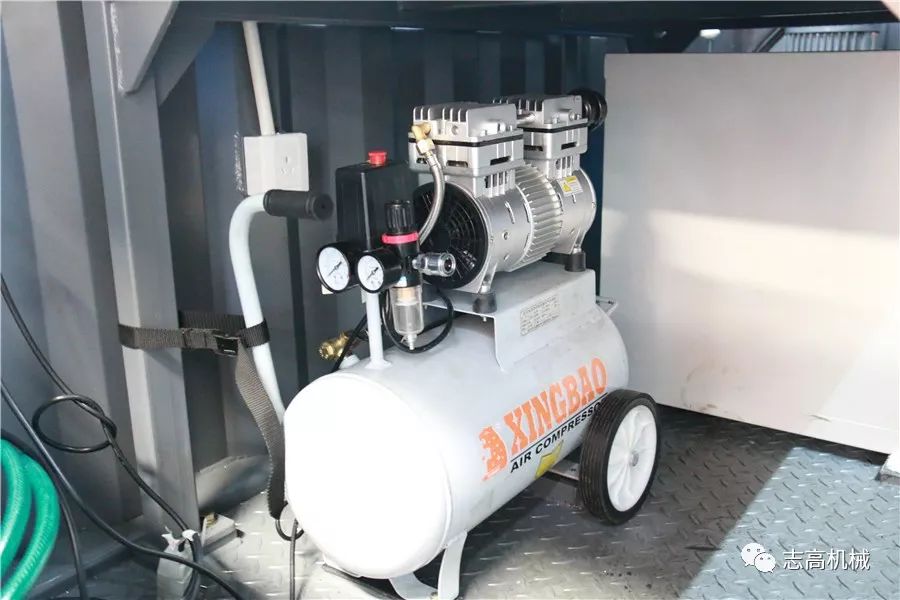

8. Air Compressor
Function: Used for blowing and cleaning of parts after washing, surface cleaning action.
Maximum exhaust pressure: 0.8 MPa
Rated exhaust pressure: 0.8 MPa
Flow: 0.08m3/min

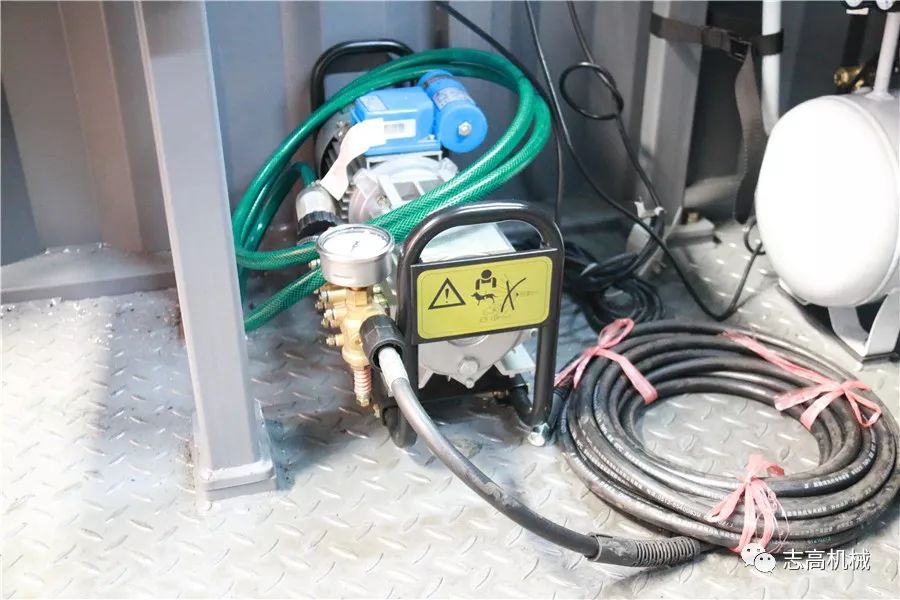

Nine, water cleaning machine
Function: Matches the filter inlet pipe, outlet pipe, and water gun to clean the sludge on drilling vehicles, air compressors, and other equipment.
Maximum pressure: 7MPa Working pressure: 6MPa
Matching power: 1.3KW; Flow: 10L/min
Power supply: 220V/50HZ

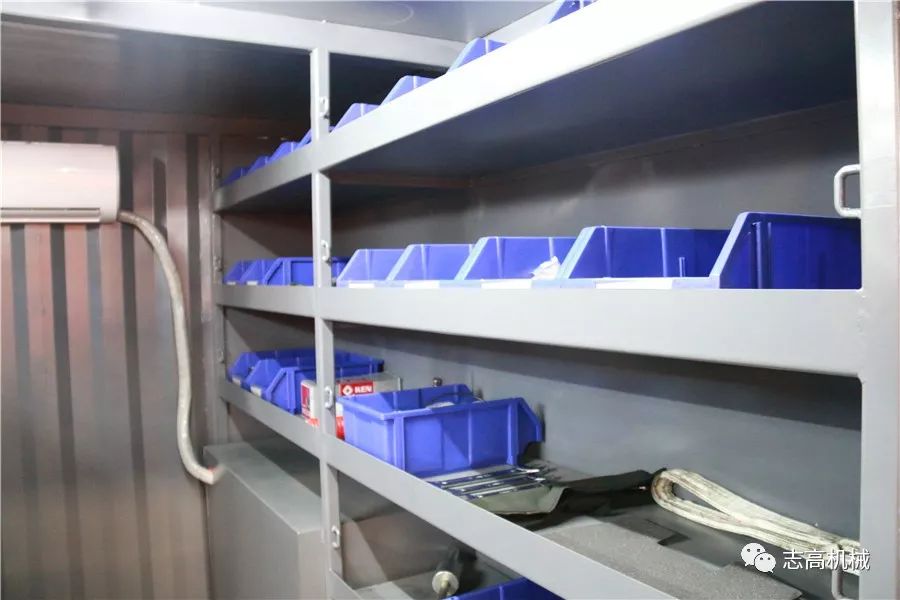

Ten, shelves
Function: shelves for storage room, for placing valuable spare parts; shelves for studio, for placing tools, various small machines and other equipment.

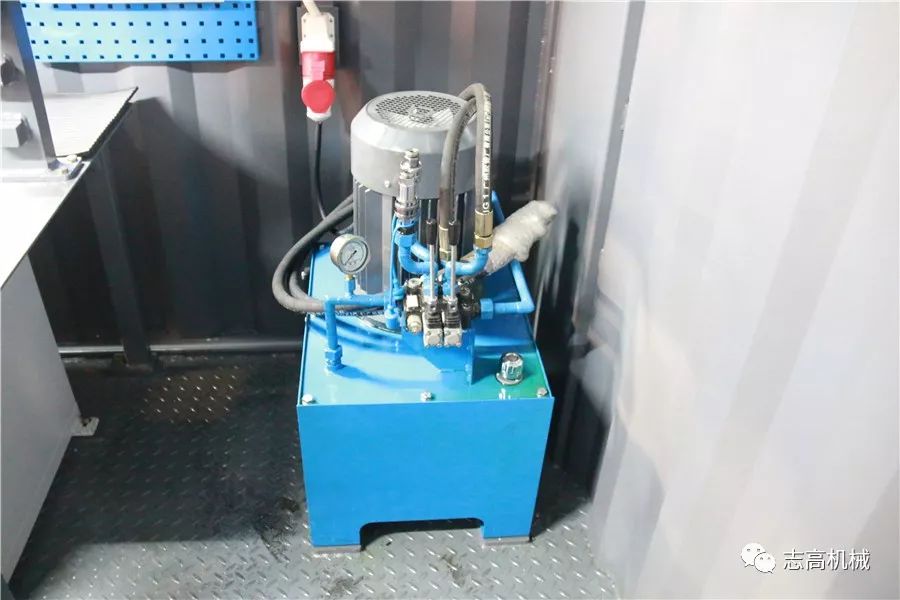

11. Hydraulic pump station
Function: In the corner under the exhaust fan, there is a hydraulic pump station, which can be used to inspect, test, and adjust hydraulic components such as oil cylinders on site.
Rated voltage: 380V/50HZ
Maximum working pressure: 25 MPa
Motor power: 7.5KW
System flow: 15L/min

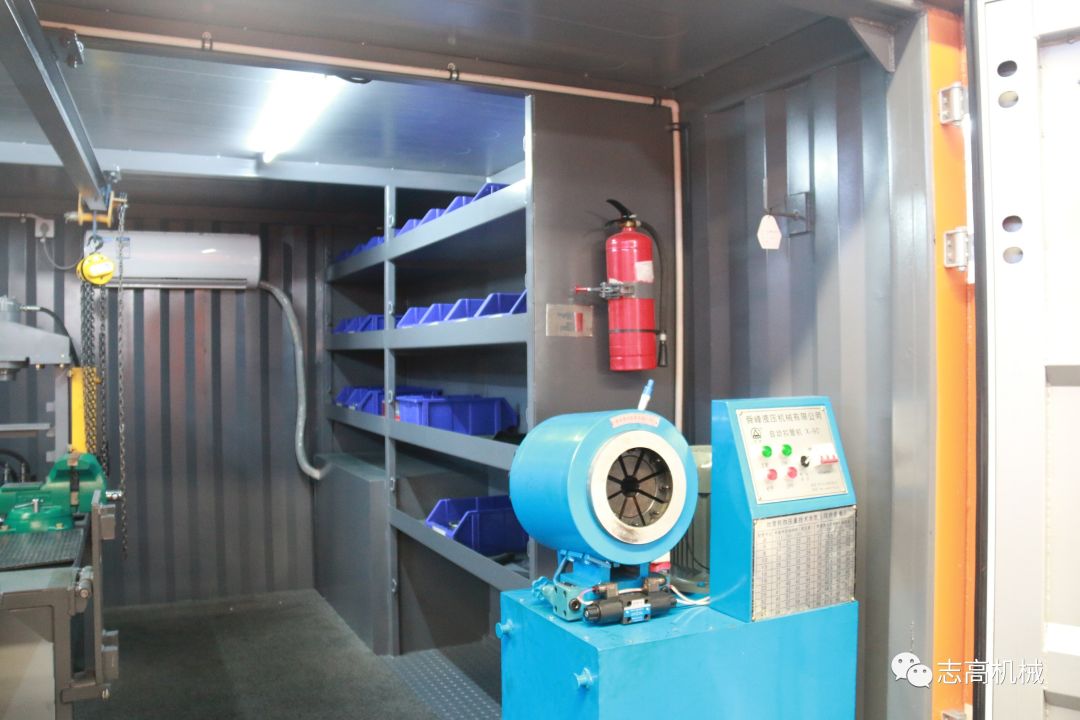

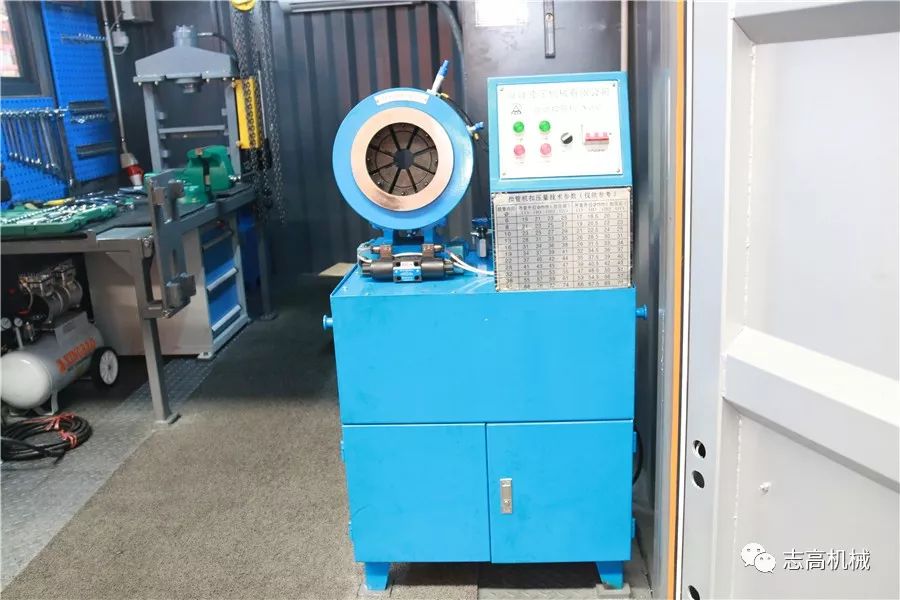

Twelve, automatic pipe bending machine
Function: The equipped mold can pressurize the hose with a diameter of 5-51.
Maximum hose passage: 5-51
Power supply: 380V
Motor power: 3KW; Mold reception and expansion: ±24
Maintenance tools are complete.

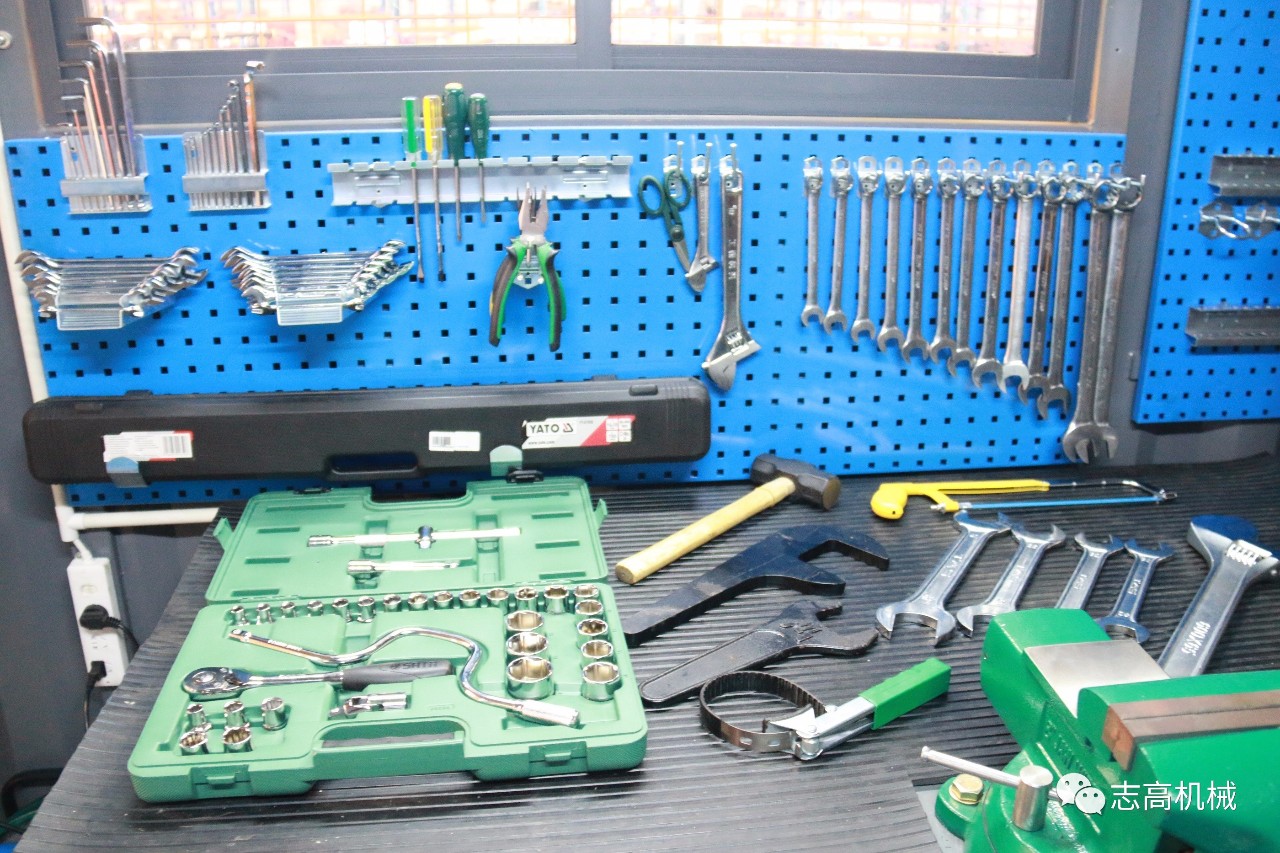

The workstation is equipped with the above equipment, and also with special tools for repairing rock drills, including two categories: commonly used and special. The tools shown in the picture are only a part of them. If you want to know more details, you can consult the business manager.
