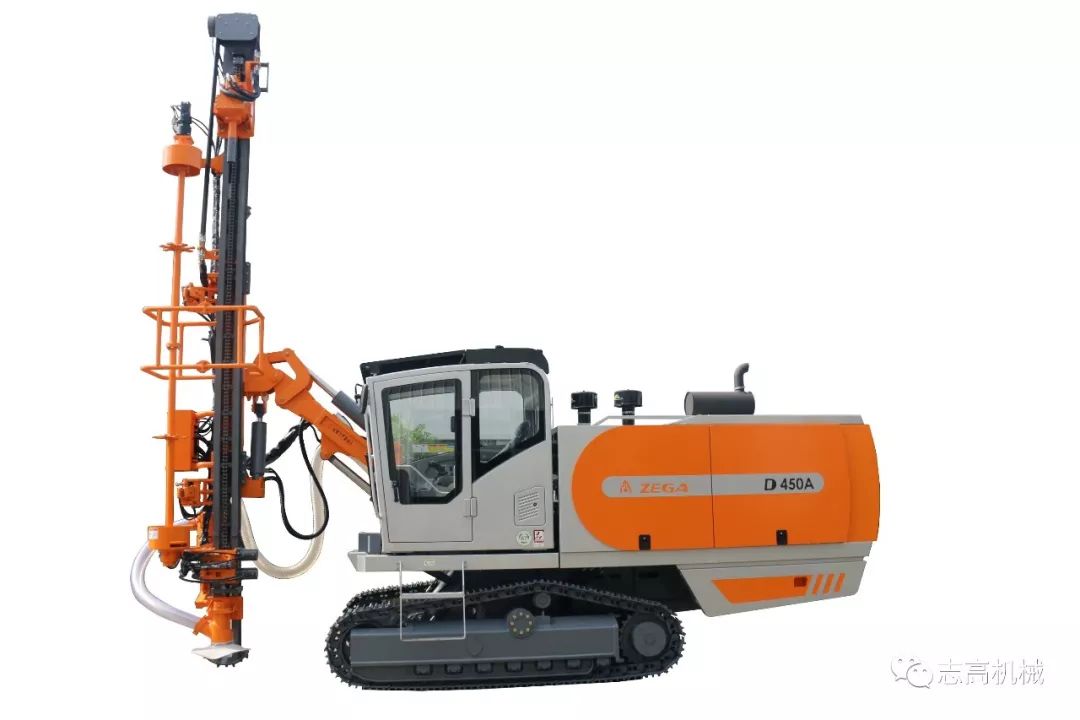

Advantages of ZEGA-D450A integrated drilling rig:
1. The standard configuration is a 4-meter long drill pipe, which reduces the replacement time and improves the comprehensive perforation speed; Adopting a motor with deceleration structure, accurate positioning and strong braking force when converting drill pipes;

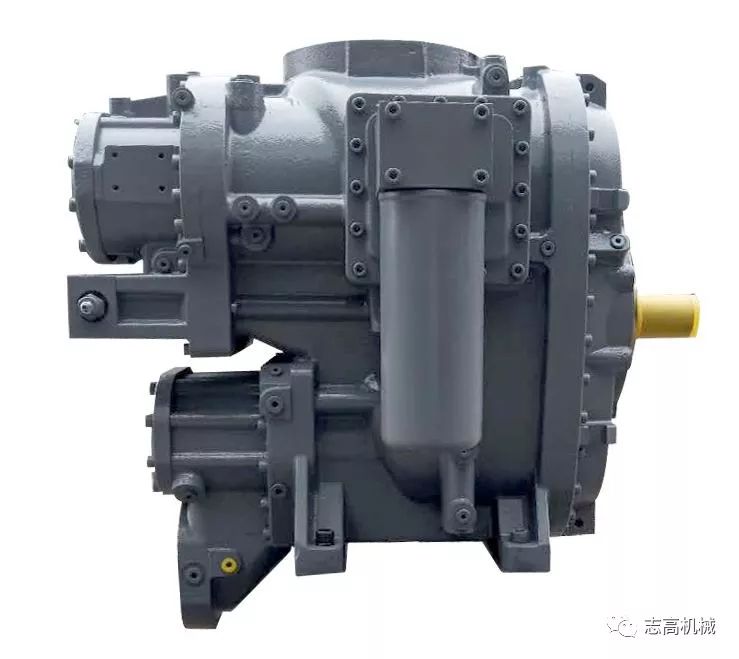

2. The screw compressor head is equipped with a forced lubrication oil pump, which provides more lubrication for the compressor head and prolongs its service life;
3. Increase the power of the starting motor to 9kW, resulting in better starting performance;

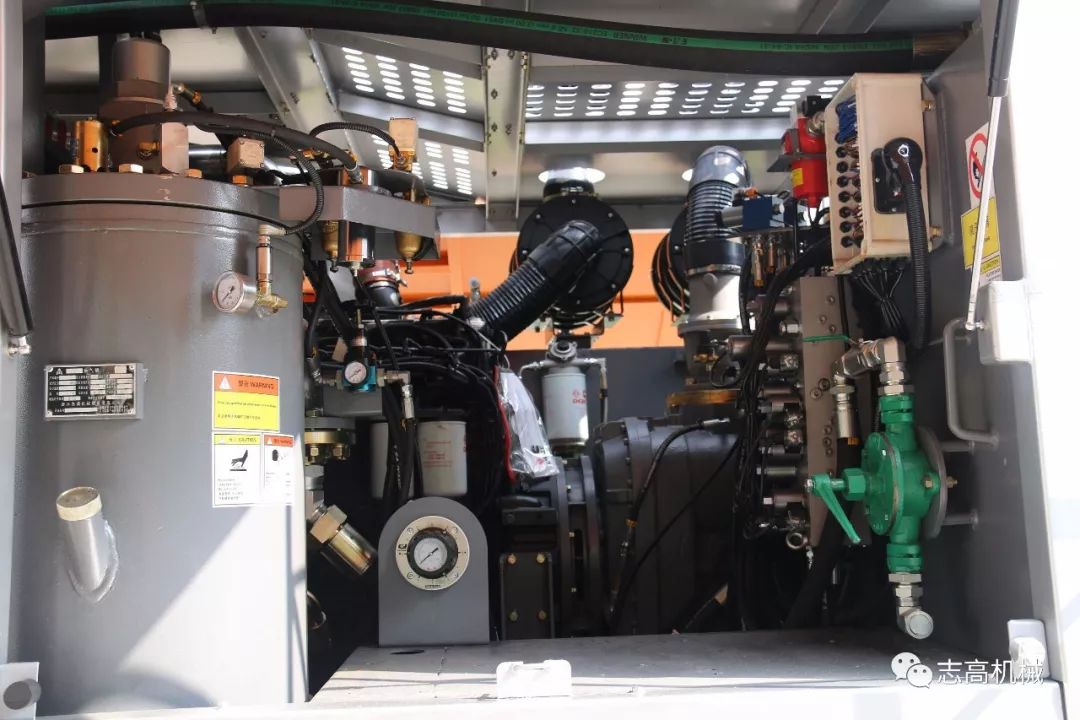

4. Convenient maintenance and upkeep. When designing the D450A, full consideration was given to how to make the machine more convenient for customers to operate during later maintenance and upkeep. The maintenance space in the cabin is spacious, and all maintenance points are within reach. There are marking rings at both ends of the oil pipes and cables, making maintenance convenient;

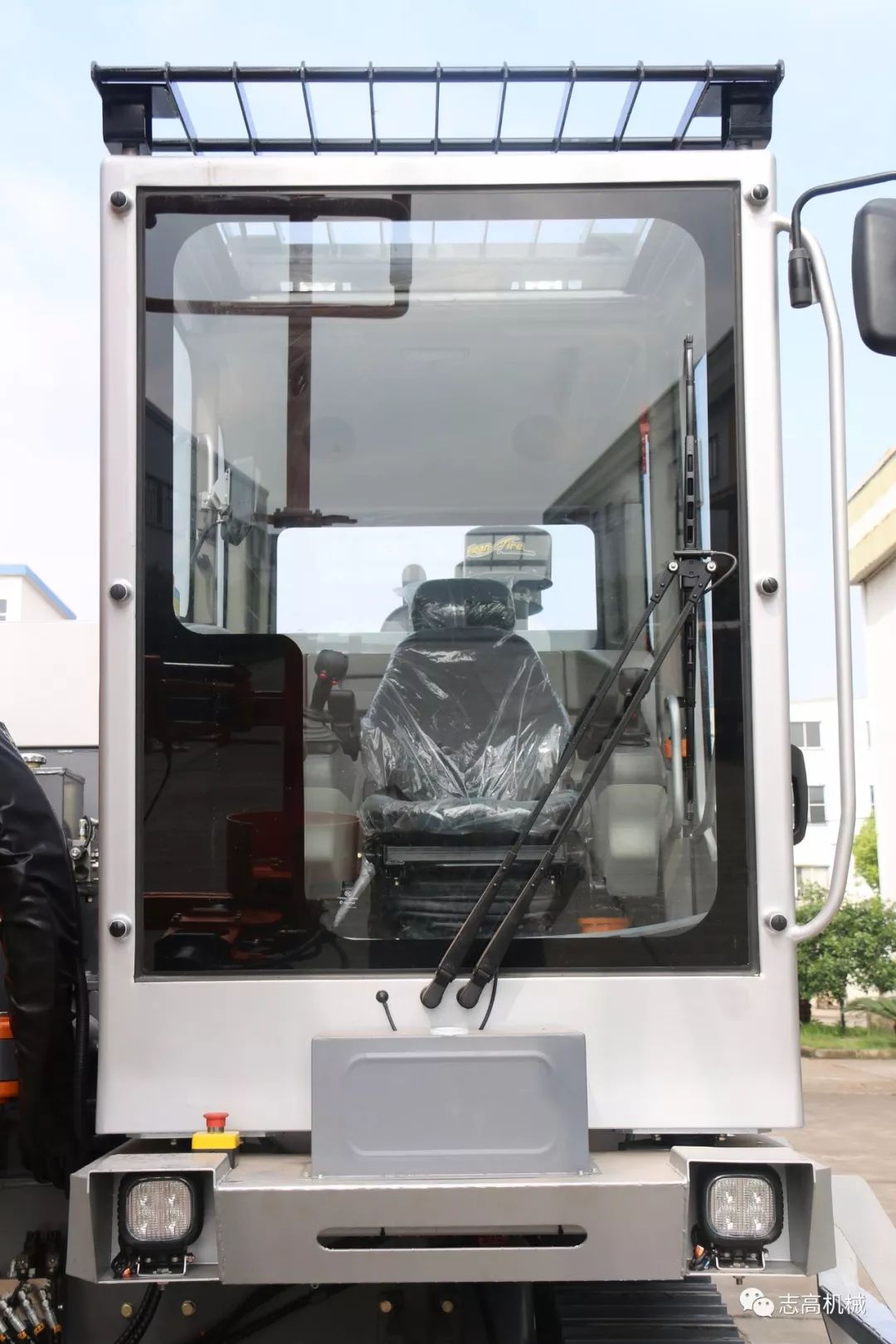

5. The cab with anti roll, rockfall, low noise, and shock absorption design is equipped with environmentally friendly glass with a wide range of views while ensuring the safety and comfort of the operator;
6. The leading integrated control design of mechatronics and hydraulics makes operation simpler and more comfortable. The full LCD large screen display provides a clear overview of the device's operational status. Provide various abnormal alarms and automatic shutdown protection to ensure the safe and reliable operation of equipment;
7. The dust collection system is equipped with high-power dust collection fans to ensure sufficient suction during operation. The large filtering area dust collection filter element not only ensures the dust collection effect but also prolongs the service life of the filter element< Br/>










nine hundred and four
Main technical parameters of ZEGA D450A:
Recommended aperture range
Aperture range
Φ 115-138mm
Applicable down-hole impactor
3.5"- 4"- 5"& Nbsp; inch
Rod changing system capability
Number of storage rods
6+1
Drill pipe outer diameter
76mm
Drill pipe length
4M
Maximum hole depth for automatic rod change
28M
Hydraulic rotary head
Rotation speed
0-105rpm
Maximum working torque
2800Nm
engine
Cummins QSC8.3-C260-30
